Overspeed Governors
R10BF Rope Clamping
Fast elevators, long runs.

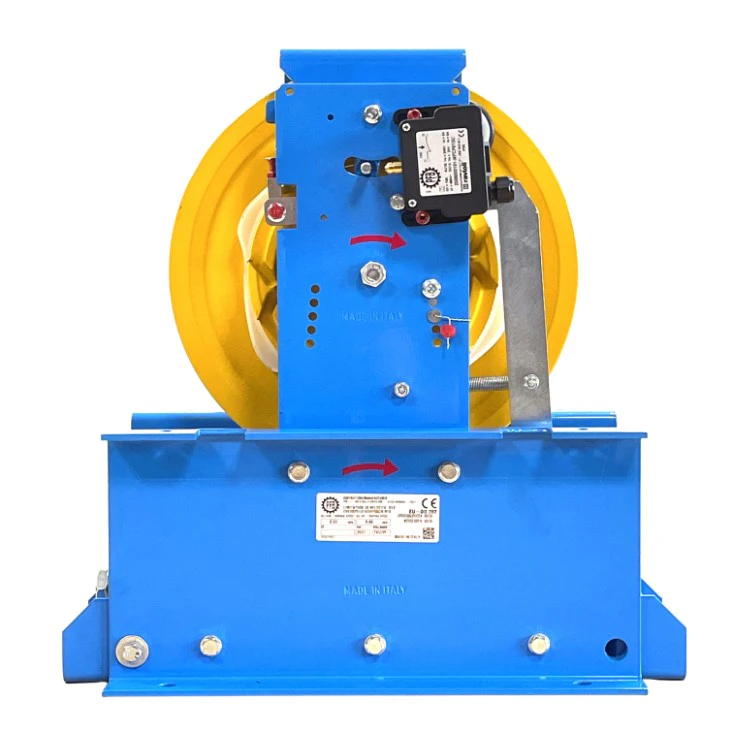

Overspeed governor R10BF Rope Clamping
Approved by TÜV Germany according to Directive 2014/33/EU and Standards EN81-20/50.
Supplied with protection carter.
| R10BF Rope Clamping | |
|---|---|
| Pulley Type | Pulley Ø 315mm Monodirectional for rope diameter 8-10 mm |
| Nominal Speed | Up to 2,35 m/s |
| Tripping Speed | From 0,50 m/s up t0 2,70 m/s |
| Protection cover | |
| Certifications | EN81-20/50, 2014/33/EU, Gost TP TC 011/2011 |
| Optional | |
|---|---|
| Test Groove | |
| Rope safety guard | |
| Remote control (IP 50) |
|
| Incremental encoder | |
| UCM |
Combinable tension weights
🔽 : down tripping
🔽🔼 : up and down tripping
